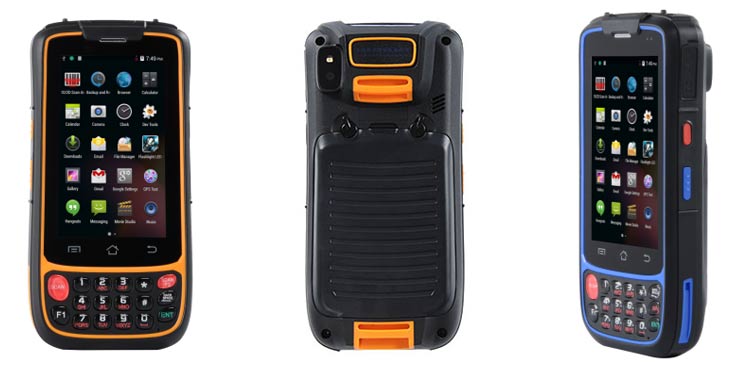

S6 Android Smart Computer

Category:PDA Barcode Scanner

Product ID:S6

Views:53

Product Introduction:IP65 water/dust proof, 1.5m/4.5ft drop survival, ergonomic design, over-molding structure, and 4.0 inch tough screen are all equipped to ensure performance.

Details

S6 serial products extend Rakinda product serials into Android OS 5.1.1 handheld terminal with numeric keypad. Inside the compact terminals, sealing level of IP65 water/dust proof, 1.5m/4.5ft drop survival, ergonomic design, over-molding structure, and 4.0 inch tough screen are all equipped to ensure performance. Latest 1.3GHz quad-core processor 2GB RAM/16GB ROM and up to 32GB expansion are all designed to boost up experience level.
RD942 Android Smart Computer
FEATURES:
1. High Speed Data Communication
Double insurance of 4G high Speed network and dual-frequency WIFI network can ensure the real-time data communication in different using environment;
2. Extraordinary Battery Life
Extremely battery of 5200mAh can ensure long battery in different using environment;
3. Rugged Ergonomic and Over-molding Design
Over-molding and ergonomic hardware design can satisfy most of the tough environment from different fields;
4. Extremely Stable Hardware Display
4.0 inch tough screen can ensure the performance under different tough environment;
5. Highly Customized Structure
‘All-in-One’ hardware design conception can expand the hardware module integration based on different project requirements, especially like UHF+HF, UHF+LF, LF+HF;
6. High Efficiency Operating
Numeric keypad can ensure the high efficiency operating status;
7. Quick-Charging
Quick-charging technology can provide the most efficient experience;
8. Perfect Service

Professional and skillful service involving the whole life cycle can guarantee the stability.

SPECIFICATIONS

PHYSICAL CHARACTERISTICS

Dimension

158mm(H)x75mm(W)x28mm(D)±2 mm

Weight

Net Weight :300g (including battery&wrist strap)

Display

4.0 in. TFT-LCD(WVGA 480x800)touch screen with backlight

Backlight

LED backlight

Keypads

3 TP keys, 17 function keys, 4 side buttons

Expansions

2 PSAM, 1 SIM, 1 TF

Battery

Rechargeable li-ion polymer, 3.7V, 5200mAh

PERFORMANCE CHARACTERSTICS

CPU

Quad A53 1.3GHz quad-core

Operating System

Android 5.1.1

Storage

2GB RAM, 16GB ROM, MicroSD(max 32GB expansion)

USER ENVIRONMENT

Operating Temp.

-20 to 50

Storage Temp.

-20 to 70

Humidity

5%RH to 95%RH(non-condensing)

Drop Specifications

5ft./1.5 m drop to concrete across the operating temperature range

Sealing

IP65, IEC compliance

ESD

±15kv air discharge, ±8kv direct discharge

DEVELOPMENT ENVIRONMENT

SDK

HHW Software Development Kit

Language

Java

Environment

Android Studio or Eclipse

DATA COMMUNICATION

WWAN

TDD-LTE Band 38, 39, 40, FDD-LTE Band 1, 2, 3, 4, 7;

WCDMA(850/1900/2100MHz);

GSM/GPRS/Edge 850/900/1800/1900MHz)

WLAN

2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac

WPAN

Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0

GPS

GPS(embedded A-GPS), accuracy of 5 m

DATA CAPTUER

BARCODE READER(OPTIONAL)

1D barcode

1D laser engine

Honeywell N431x

Symbologies

All major 1D barcodes

2D barcode

2D CMOS Imager

Honeywell N6603

Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.

COLOR CAMERA

Resolution

8.0 megapixel

Lens

Auto-focus with LED flash

RFID READER(OPTIONAL)

RFID LF

Frequency

125KHz/134.2KHz(FDX-B/HDX)

Protocol

ISO 11784&11785

R/W Range

2cm to 10 cm

RFID HF

Frequency

13.56MHz

Protocol

ISO 14443A&15693

R/W Range

2cm to 8cm

Active 2.45GHz

Read range more than 200 m

433MHz

Read range more than 200 m

ZigBee READER(OPTIONAL)

Protocol

IEEE 802.15.4

Reading Range

100 m to 200 m

PSAM SECURITY(OPTIONAL)

Protocol

ISO 7816

Baudrate

9600, 19200, 38400,43000, 56000, 57600, 115200

Slot

2 slots(maximum)

ACCESSORIES

Standard

1xPower Supply

1xLithium Polymer Battery

1xDC charging cable

1xUSB data cable

Optional

Magnetic charging cable
