LV4000 2D OEM OCR Recognition Engine

Category:Barcode Scan Engine

Product ID:

Views:2922

Product Introduction:




Inquiry Now

Details

Introducing the LV4000 OEM 2D Scan, the pinnacle of scanning innovation designed for swift and efficient barcode capture. Equipped with a quick-startup design, this device minimizes delay and optimizes productivity right from its first use. At its core lies a high-resolution megapixel sensor, ensuring every detail of 1D and 2D barcodes is captured with exceptional clarity. The LV4000 boasts an advanced OCR function, allowing for the effortless decoding of text alongside barcodes, ideal for diverse data entry requirements. Its precision is further enhanced by a cross laser line aimer, enabling users to target barcodes with unparalleled accuracy, making it a superior choice for all your scanning needs.


Parameters of QR code scanner engine

Performance Physical
Image Sensor CMOS  1280 * 800 Interface USB/TTL
Light Source White LED Voltage 3.3 VDC±10%
Aimer Cross Laser Line Operating Current(Typical) 170mA(3.3 VDC)
Scan Angle Skew±55° Pitch±55° Roll 360° Operating Current(Max) 200mA(3.3 VDC)
FOV D=48.7°  V=27.0°  H=42.0° Standby Current 115mA(3.3 VDC)
Resolution 1D≥4mil(Code39、EAN13) Sleep Current 15mA(3.3VDC)
2D≥5mil(QR、DM、PDF417) Consumption(Typical) 561mW

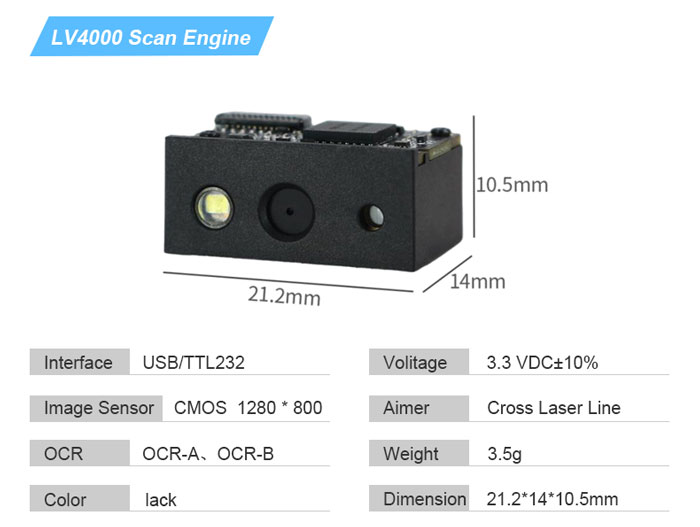

Minimum Print Contrast ≥20% Dimension 21.2(W)×14(D)×10.5(H) mm
Decode Capacity Net Weight 3.5g
1D Code 128、Code93、EAN-8、EAN-13、UPC-A、UPC-E、Code 39、Code 11、Codabar、ISBN、GS1 128、GS1 DataBar、Matrix 25、Interleaved 2 of 5、Standard 25、Industrial 2 of 5、MSI/MSI PLESSEY Color Black
2D QR Code、Data Matrix、PDF417、HANXIN、Dot code、maxi Code、Aztec Code Countries Keyboard Multi-Countries Keyboard
Decode Range(Typical) Environmental
Code39(5mil) 90mm~240mm Operating Temperature -30℃ ~ 70℃
Barcode Size:25mm*10mm Storage Temperature -40℃ ~ 80℃

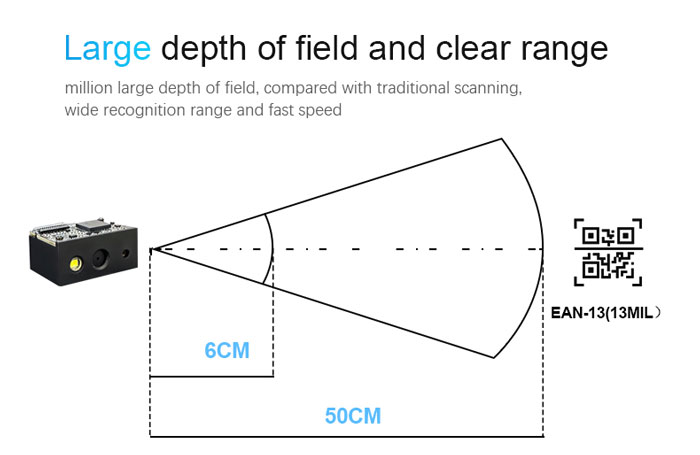

EAN-13(13mil) 60mm~500mm Humidity 5% ~ 95%(Non-Condensing)
Barcode Size:31mm*16mm Ambient Light 0~100,000LUX
QR Code(15mil) 50mm~260mm LED Safety IEC 62471
Barcode Size:8mm*8mm Accessories(optional)
Optional EVK Development board with trigger and beeper
OCR OCR-A、OCR-B Cable USB Cable
RS-232 Cable
