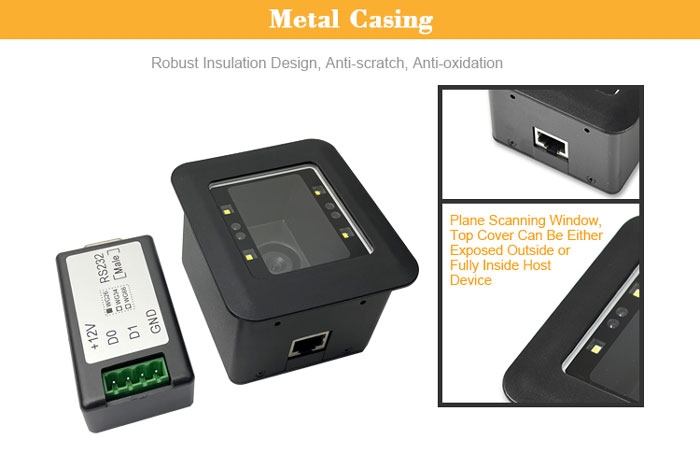

RD4500R 2D Stationary Scanners for Turnstile

Category:Fixed Mount Scanner

Product ID:RD4500R

Views:20659

Product Introduction:RD4500R is a scanner with housing. It has USB or RS232 output cable for customers to choose. the series fixed mount barcode scanner is able to read barcodes on paper and mobile phones.




Inquiry Now

Details

Barcode Scanner Module Introduction:

RD4500R fixed mount barcode scanner is designed primarily for such applications as electronic tickets/coupons, mobile marketing, mobile payment, kiosk, turnstile, and office automation, the series fixed mount barcode scanner is able to read barcodes on paper and mobile phones.


Features of Wiegand Barcode Reader
1. It can read both printed and phone screen 1D/2D barcodes
2. Designed with IR sensor, it can read even in total darkness.
3. White LED light source protects users' eyes.
4. Instant reading and decoding within 0.3 sec.
5.Outstanding Power Efficiency
6.The advanced technology incorporated in the scanner helps to reduce the power consumption and prolong the service life of the device
7.USB/RS232 Cable Power Adaptor

Compatible OS:
Android, Windows, Linux

Projects:

Turnstile, Kiosk, ATM, Payment Terminal, Ticketing Validator, etc.


Turnstile Manufacturers Specifications:

RD4500R-Specification

Performance

Processor

IOTC 0370 CHIP

Image Sensor

752×480 CMOS

Interface

RS-232 (9.6~115.2Kbps) / USB 1.1 (HID-KBW, HID-POS)

Symbologies

2D

PDF417, Data Matrix, QR Code

1D

EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey

Scan Mode Type

Sense mode

Resolution

10mil

Light Source

White LED

Scan Window

38.3mm×60.4mm

PCS

≥30%

FOV

Diagonal: 85°, Horizontal: 63.7°, Vertical: 70°

Mechanical/Electrical

Power Consumption

1.75W (max.)

Notification

Beep

Size (L x W x H)

84×74×50mm

Weight

300g
