S2-series Handheld Industrial DPM Barcode Scanner

Category:Handheld & Desktop Scanner

Product ID:

Views:1115

Product Introduction:RAKINDA S2-series is a high-performance, high-reliability scanner for industrial application environments.




Inquiry Now

Details

RAKINDA S2-series is a high-performance, high-reliability scanner for industrial application environments. It has the advantages of anti-fall, waterproof, and dustproof. It has a firm and comfortable grip and is not easy to fatigue.



There are two series of 1.3 million pixels:

S2-1: High-performance barcode reading equipment with 130-pixel global shutter, specially designed for reading printed barcodes. It is good at reading high-density barcodes, dirty, defective, low contrast barcodes, etc. The scanning distance is long, the code scanning fluency is high, and it can be compatible with small barcodes at close range at the same time, and has good versatility.

S2-2: Designed for higher density or smaller DPM codes, and can adapt to more complex object surface environments, and can also recognize various types of DPMs with less than ideal recording quality. S2-2 loads the company's most powerful industrial decoding algorithm, with deep AI algorithm learning, to ensure that all kinds of DPM barcodes can be read smoothly.



Product Parameters

S2-Datasheet

Parameters

Scanning performance

Resolution

1280 Pixels(H) x 1024 Pixels(V)

Illumination

White light

Focus

S2-1 Green strip S2-2 Red strip

Reading mode

Key scanning, Automatic induction scanning

Decode Capabilities

1D

UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93

Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 ,

IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 ,

RSS-14 Expanded , RSS-14 Limited Composite Code-A ,

Composite Code-B , Composite Code-C

2D

Data Matrix , QR Code , Micro QR , PDF 417 , Micro PDF 417Aztec, Maxicode

Reading accuracy

1D : ≥3 mil ; 2D : ≥5 mil

Typical Depth of Field

Model

S2-1

S2-2

Code 39 (3mil)

  55mm~150mm

40mm~70mm

Code 39 (5mil)

  45mm~250mm

30mm~100mm

Data Matrix (5mil)

40mm~60mm

40mm~70mm

100%UPCA (13mil)

 40mm~500mm

30mm~100mm

Field of view

Level 41° (H)Plumb 35° (V);

Print contrast

≥20%(UPC/EAN 100% , PCS 90%)

Dimension

Physical dimension

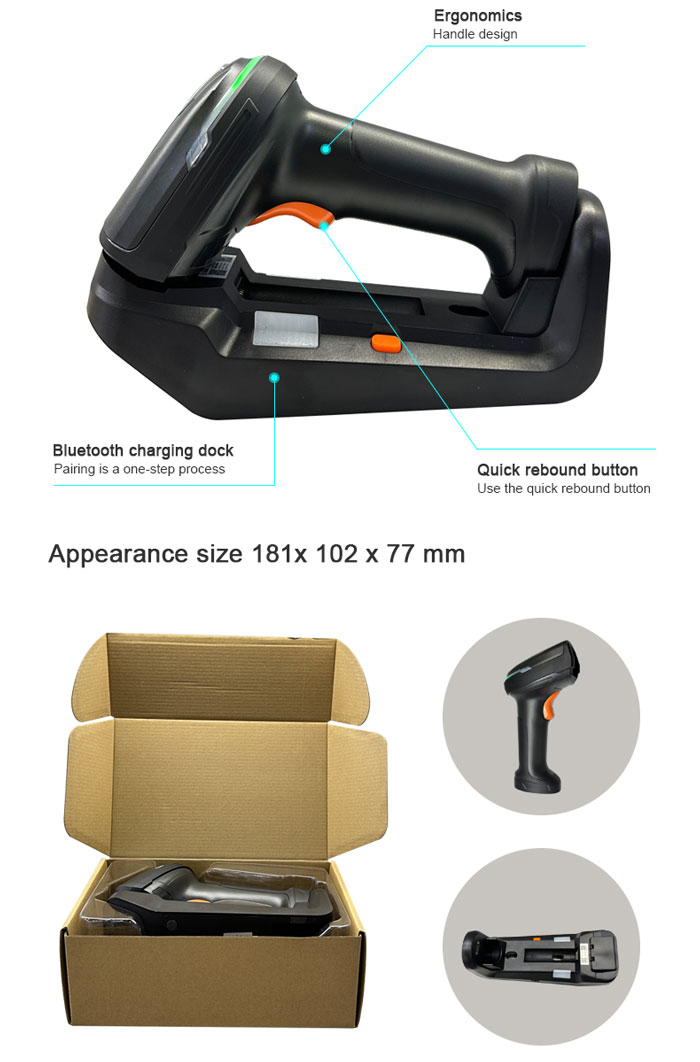

181x 102 x 77 mm

Electrical parameters

Weight

150g (cable not included)

Communication interface

USB RS-232Virtual COM Port

Data cable length

Straighten 2 meters

Prompt way

BuzzerLED Indicator light, Vibration motor

Operating Voltage

DC 5V±5%

Working current

300 mA ±5%Typical value, 400 mA ±5%Maximum value

Stand-by current

100 mA ±5%

Environmental parameters

Operating temperature

-20℃~+50℃

Storage temperature

-40℃~+70℃

Relative humidity

5%~95%(no condensation)

Static Protection

±12 kV(Air discharge)±8 kV (Direct discharge)

Drop height

1.8m

Degree of protection

IP65

Regulatory

FCC Part15 Class BCEEMC Class B
