LV3000L Long Range QR Scanner

Category:Long Range QR Scanner

Product ID:LV3000L

Views:7511

Product Introduction:LV3000L long range barcode scanner is capable of reading 1D as well as high-volume 2D barcodes on the screen covered with protective film




Inquiry Now

Details

LV3000L long range barcode scanner is capable of reading 1D as well as high-volume 2D barcodes on the screen covered with protective film,automatically adjust the brightness of supplementary lighting based on the light reflected off barcode.

Embed Barcode Reader Features:
1.IR/Light Triggers
The combination of IR sensor and light sensor exhibits an improved sensitivity in activating the scanner to scan barcodes as they are presented, to achieve higher throughput and productivity.
2.Automatic Exposure Control (AEC)
The sensors in the LV3000L automatically adjust the brightness of supplementary lighting based on the light reflected off barcode.
3.IP54-sealed Housing
The LV3000L fixed mount barcode scanner is environmentally sealed to an IP54 rating to prevent dust, moisture and other contaminant from entering it.
4.Unmatched Reading Performance
The LV3000L is capable of reading 1D as well as high-volume 2D barcodes on the screencovered with protective film.
5.Highly Visible Laser Aimer
The LV3000L 2d barcode scanner provides a laser-generated aiming pattern that is clear and bright even in bright sunlight, ensuring first time accurate aim.
6.1.5m Drop Resistance
The scanner withstands multiple 1.5m drops toconcrete (for six sides, three drops per side).
7.Reading Distance
Phone Screen Code: 25cm~100cm, Paper Code:15cm~100cm

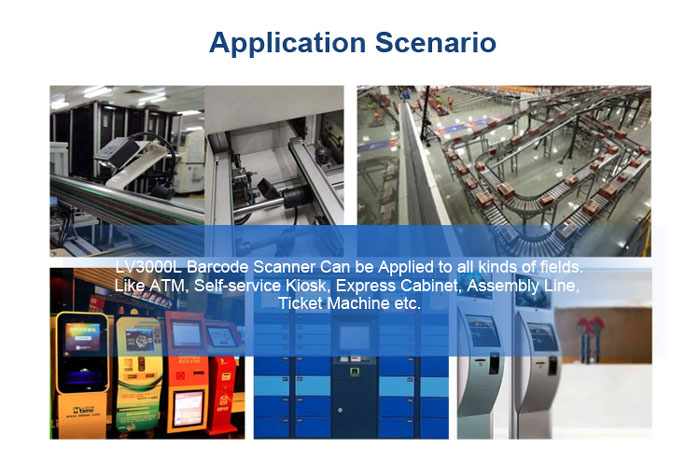

Application Fields:

Self-service Kiosk Terminal, Payment machine, Smart Locker, Vending Machine, O2O applications, etc.


LV3000L Long Range Barcode Scanner

Rakinda LV3000L Datasheet-EN

Performance

Image Sensor

1280*800 CMOS

Illumination Aiming

White LED Laser Diode or Gree LED

Symbologies

2D

PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One, ect.

1D

EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc.

 Resolution

>=3 mil

Typical Depth of Foeld

Phone Screen Code



25cm~100cm



Paper Printed Code



15cm~100cm

Scan Mode

Sense mode, Continuous mode, Level mode, Pulse mode

Scan Angle

Roll:360d, Pitch:±55°, Skew:±55°

Field of View

Horizontal 51°, Vertical 32°

 Min Symbol Contrast

25%

 Mechanical Electric

 Interface

RS-232, USB

Dimensions

63(W)*45(D)*28(H)

Weigh

75g

Notification

Beep, LED indicator

Rated Power Consumption

1622mW(typical)

Operating Voltage

 5VDC±-5%

Current SVDC

Operating

276.8mA(typical), 322.7mA(max.)

Standby

83.3mA

Environmental

Operating Temperature

 -20℃ to 60℃(-4℉ to140℉)

 Storage Temperature

 -40℃ to 70℃ (-40℉ to 158℉)

 Humidity

5% to 95% (non-condensing)

 ESD

± 14kV (air discharge), ±8kV (direct discharge)

 Drop

1.5m

Sealing

IP54

Certifications

FCC Part1S Class& CE EMC Class B, RoHS, IEC60825, IEC62471, KC

Environmental

Cable

  USB

Used to connect to a host device

RS-232

Used to connect to a host device

Power Adapter

DC5V adapter to power with RS-232 cable
