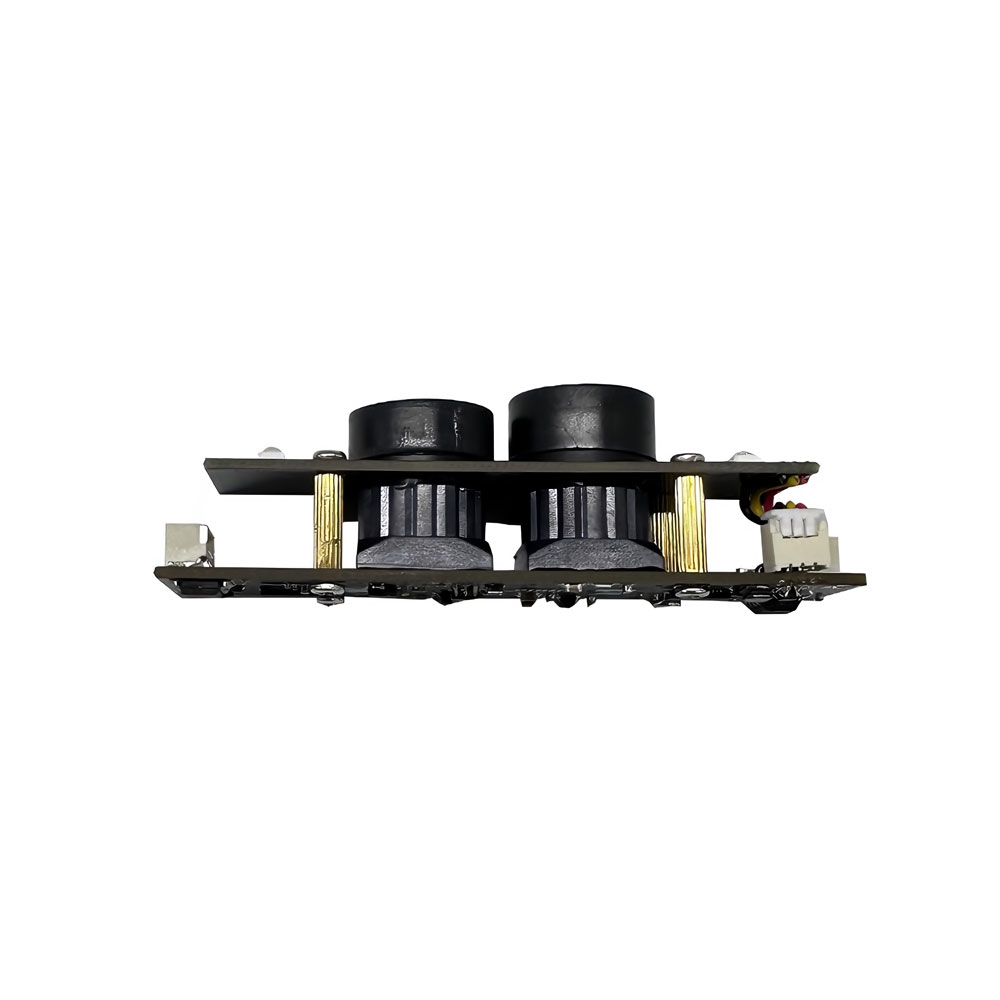

RD21 Industrial HD Image Sensor Dynamic Module

Category:Facial Camera Module

Product ID:

Views:10730

Product Introduction:RD21 Industrial Level HD Image sensor USB 2.0 High speed 2-mega Infrared and 2-mega wide dynamic module




Inquiry Now

Details

Discover unmatched visual clarity with our cutting-edge industrial camera, featuring a 1/2.9" HD image sensor for supreme dynamics and sensitivity. Ideal for complex lighting, it boasts a 90° ultra-wide, distortion-free lens and crisp imaging from 40cm to infinity. Experience maximum 1200TVL resolution and ultra-low light performance at 0.01Lux. Our camera ensures stable operation across extreme temperatures from -30℃ to 70℃, and quality assured by USB-IF WHQL, ROHS, CE certifications. Benefit from USB 2.0 high-speed data transfer and extensive compatibility, including UVC architecture. Customizable device descriptors and top-grade cabling ensure seamless integration for a broad spectrum of industrial applications.


Description

Signal

B/W(infrared)

multicolour

REMARKS

scanning mode

Progressive scan



scan frequency (H)

25HZ



scan frequency (V)

50HZ



Image photoreceptor

1/2.9    2M



Effective pixel

1920*1080



Pixel point size

2.8um*2.8um



Data output type

Raw Data 10bits



output format

MPJG/YUY2



Resolution and  Frame
Rate

1920x1080 at 25fps

1280x960 at 30fps

1280x720 at 30fps

1024x768 at 30fps

800x600 at 30fps

640x480 at 30fps

352x288 at 30fps

320x240 at 30fps

160x120 at 30fps

1920x1080 at 25fps
1600x1200at25fps

1280x1024 at 25fps
1280x960 at 30fps

1280x720 at 30fps
1024x768 at 30fps

800x600 at 30fps
640x480 at 30fps

352x288 at 30fps
320x240 at 30fps

160x120 at 30fps

MJPG

Resolution and  Frame
Rate

1920x1080 at 25fps

1280x960 at 30fps
1280x720 at 30fps

1024x768 at 30fps
800x600 at 30fps

640x480 at 30fps
352x288 at 30fps

320x240 at 30fps
160x120 at 30fps

1920x1080 at 25fps
1600x1200at 25fps

1280x1024 at 25fps
1280x960 at 30fps

1280x720 at 30fps
1024x768 at 30fps

800x600 at 30fps
640x480 at 30fps

352x288 at 30fps
320x240 at 30fps

160x120 at 30fps

YUY2

noise-signal ratio

50db



dynamic range

80db



minimal illumination

0.1LUX at F1.2



Connection interface

5-pin 1.25mm USB2.0HIGH SPEED

fastener

source

5V±5%



power

ir-LED

OFF

Min 0.5W

Max 0.75W



ON

Max 1W

light spectrum

850nm

650nm



product size (mm)

17X70X17.7   ±5%



weight

52g±5%



stabilized      operating temperature (℃)

-30~70



Storage   Temperature & Humidity (℃)

-40~80℃/0~90RH



product standard

USB -IF WHQL CE RoHS



Match  with  the  lens

M123.5mm



type

Default lens

H=82 ° V=58 ° D=90 ° (±4 ° )

distortio nless

depth of field

30CM~



support system

Windows XP sp2/vista/7/8.1/10/Mac/linux2.6.2include UVC



The     USB     interface

1

5V

USB POWER



definition

2

DM

·

D-



3

DP

·

D+



4

GND

·

DGND



5

COVER

·

Shield
